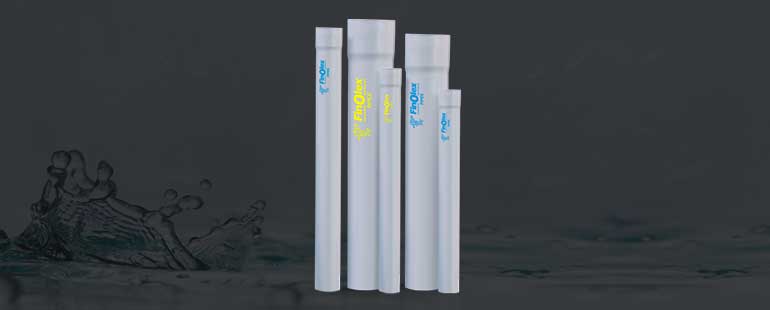

PVC-U – SCHD 40 & 80 -

ASTM plumbing pipes are manufactured as per ASTM D 1785 and are available in Sch. 40 and 80 pressure classes. The pipes are available in a standard length of 3 meters and 6 meters in both plain and threaded ends. Threads are compatible with GI fittings as per IS-554. ASTM threaded pipes are cheaper to conventionally used G.I. pipes and offer all the advantages of plastic piping system.
The maximum continuous service temperature for Finolex PVC-U plumbing pipes is 60oC. The ASTM Pipes’ abrasion resistance, light weight, mechanical strength, toughness and durability are the key reasons for it’s used in construction and building applications.

  • Technical Specifications for Finolex PVC-U – SCHD 40 & 80
    Dimensions and water pressure rating at 23°C for pipes as per ASTM D-1785 for Pipes with Plain Ends

    Nominal Size

    Outside diameter “D” in nominal (mm)

    Schedule 40

    Schedule 80

    Packaging “L” in mm

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Mm

    inch

    kgf/cm2

    PSI

    kgf/cm2

    psi

    15

    ½

    21.34 ± 0.10

    2.77 +0.46

    41.40

    589

    1013920994102

    3.73+0.51

    58.60

    833

    1014920994102

    6 mtr

    20

    ¾

    26.57 ± 0.10

    2.87 +0.51

    33.10

    470

    1013925994102

    3.91+0.51

    47.60

    677

    1014925994102

    6 mtr

    25

    1

    33.27 ± 0.13

    3.38 +0.51

    31.00

    440

    1013932994102

    4.55+0.53

    43.40

    617

    1014932994102

    6 mtr

    30

    1¼

    42.03 ± 0.13

    3.56 +0.51

    25.50

    363

    1013940994102

    4.85+0.58

    35.90

    510

    1014940994102

    6 mtr

    40

    1½

    48.11 ± 0.15

    3.68 +0.51

    22.80

    324

    1013950994102

    5.08+0.61

    32.40

    461

    1014950994102

    6 mtr

    50

    2

    60.17 ± 0.15

    3.91 +0.51

    19.30

    274

    1013963994102

    5.54+0.66

    27.60

    392

    1014960994101

    6 mtr

    65

    2½

    73.02 ± 0.18

    5.16 +0.61

    20.70

    294

    1013975994101

    7.01+0.84

    29.00

    412

    1014975994101

    6 mtr

    80

    3

    88.70 ± 0.20

    5.49 +0.66

    17.90

    254

    1013990994101

    7.62+0.91

    25.50

    363

    1014990994101

    6 mtr

    100

    4

    114.07 ± 0.23

    6.02 +0.71

    15.20

    216

    1013110994101

    8.56+0.1.02

    22.10

    314

    1014110994101

    6 mtr





    Nominal Size

    Outside diameter “D” in nominal (mm)

    Schedule 40

    Schedule 80

    Packaging “L” in mm

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Mm

    inch

    kgf/cm2

    PSI

    kgf/cm2

    psi

    15

    ½

    21.34 ± 0.10

    2.77 +0.46

    41.40

    589

    1013920994103

    3.73+0.51

    58.60

    833

    1014920994103

    3 mtr

    20

    ¾

    26.57 ± 0.10

    2.87 +0.51

    33.10

    470

    1013925994103

    3.91+0.51

    47.60

    677

    1014925994103

    3 mtr

    25

    1

    33.27 ± 0.13

    3.38 +0.51

    31.00

    440

    1013932994103

    4.55+0.53

    43.40

    617

    1014932994103

    3 mtr

    30

    1¼

    42.03 ± 0.13

    3.56 +0.51

    25.50

    363

    1013940994103

    4.85+0.58

    35.90

    510

    1014940993103

    3 mtr

    40

    1½

    48.11 ± 0.15

    3.68 +0.51

    22.80

    324

    1013950994103

    5.08+0.61

    32.40

    461

    1014950993103

    3 mtr

    50

    2

    60.17 ± 0.15

    3.91 +0.51

    19.30

    274

    1013963994103

    5.54+0.66

    27.60

    392

    1014960993100

    3 mtr
  • Dimensions and water pressure rating at 23°C for pipes as per ASTM D-1785 for Pipes with Threaded Ends (Threads as per IS:554)

    Nominal Size

    Outside diameter “D” in nominal (mm)

    Schedule 40

    Schedule 80

    Packaging “L” in mm

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Mm

    inch

    kgf/cm2

    PSI

    kgf/cm2

    psi

    15

    ½

    21.34 ± 0.10

    2.77 +0.46

    41.40

    589

    1013920994101

    3.73+0.51

    58.60

    833

    1014920994101

    6 mtr

    20

    ¾

    26.57 ± 0.10

    2.87 +0.51

    33.10

    470

    1013925994101

    3.91+0.51

    47.60

    677

    1014925994101

    6 mtr

    25

    1

    33.27 ± 0.13

    3.38 +0.51

    31.00

    440

    1013932994101

    4.55+0.53

    43.40

    617

    1014932994101

    6 mtr

    30

    1¼

    42.03 ± 0.13

    3.56 +0.51

    25.50

    363

    1013940994101

    4.85+0.58

    35.90

    510

    1014940994101

    6 mtr

    40

    1½

    48.11 ± 0.15

    3.68 +0.51

    22.80

    324

    1013950994101

    5.08+0.61

    32.40

    461

    1014950994101

    6 mtr

    50

    2

    60.17 ± 0.15

    3.91 +0.51

    19.30

    274

    1013963994101

    5.54+0.66

    27.60

    392

    1014960994100

    6 mtr

    65

    2½ *

    73.02 ± 0.18

    5.16 +0.61

    20.70

    294

    1013975994100

    7.01+0.84

    29.00

    412

    1014975994100

    6 mtr

    80

    3

    88.70 ± 0.20

    5.49 +0.66

    17.90

    254

    1013990994100

    7.62+0.91

    25.50

    363

    1014990994102

    6 mtr

    100

    4

    114.07 ± 0.23

    6.02 +0.71

    15.20

    216

    1013110994100

    8.56+0.1.02

    22.10

    314

    1014110994100

    6 mtr





    Nominal Size

    Outside diameter “D” in nominal (mm)

    Schedule 40

    Schedule 80

    Packaging “L” in mm

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Wall thickness “T” in mm

    Working Pressure

    Cat No.

    Mm

    Inch

    kgf/cm2

    PSI

    kgf/cm2

    psi

    15

    ½

    21.34 ± 0.10

    2.77 +0.46

    41.40

    589

    1013920993104

    3.73+0.51

    58.60

    833

    1014920994100

    3 mtr

    20

    ¾

    26.57 ± 0.10

    2.87 +0.51

    33.10

    470

    1013925994100

    3.91+0.51

    47.60

    677

    1014925994100

    3 mtr

    25

    1

    33.27 ± 0.13

    3.38 +0.51

    31.00

    440

    1013932994100

    4.55+0.53

    43.40

    617

    1014932994100

    3 mtr

    30

    1¼

    42.03 ± 0.13

    3.56 +0.51

    25.50

    363

    1013940994100

    4.85+0.58

    35.90

    510

    1014940994100

    3 mtr

    40

    1½

    48.11 ± 0.15

    3.68 +0.51

    22.80

    324

    1013950994100

    5.08+0.61

    32.40

    461

    1014950994100

    3 mtr

    50

    2

    60.17 ± 0.15

    3.91 +0.51

    19.30

    274

    1013963994100

    5.54+0.66

    27.60

    392

    1014963994100

    3 mtr

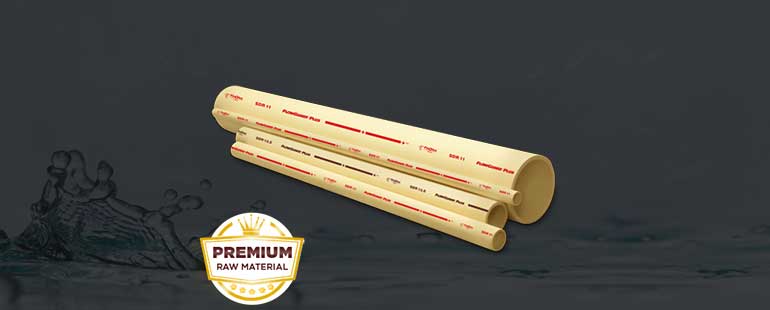

FlowGuard Plus CPVC Pipes -

Finolex FlowGuard Plus CPVC pipes are available in sizes from 15mm (1/2″) to 54mm (2″) and are manufactured as per IS 15778 in SDR 11 & 13.5 series and fittings as per ASTM D2846 in CTS (Copper tube sizing). Finolex also produces pipes in ‘iron pipe size’ (IPS), which are available in sizes 65mm (2 1/2″) to 100mm (4″) in schedule 40 and schedule 80 series which meet the ASTM requirements of F441, with various pressure ratings as well as temperatures.

  • Technical Specifications for Finolex FlowGuard Plus CPVC Pipes
    Dimensions of CPVC Pipes
    Sizes mm (inch) “D” SDR 11 SDR 13.5
    Pressure Rating (Mpa) Cat No. Package “L” Cat No. Package “L” Pressure Rating (Mpa) Cat No. Package “L” Cat No. Package “L”
    2.76 0.68 2.18 0.55
    270C 820C 270C 820C
    Wall Thickness “t” in mm Wall Thickness “t” in mm
    Min. Max. Min. Max.
    15 (½”) 1.7 2.2 1070920996102 5 mtr 1070920996100 3 mtr 1.4 1.9 – 5 mtr – 3 mtr
    20 (¾”) 2.0 2.5 1070925996104 5 mtr 1070925996100 3 mtr 1.7 2.2 1070925996105 5 mtr 1070925996101 3 mtr
    25 (1″) 2.6 3.1 1070932996104 5 mtr 1070932996100 3 mtr 2.1 2.6 1070932996105 5 mtr 1070932996101 3 mtr
    32 (1¼”) 3.2 3.7 1070940996104 5 mtr 1070940996100 3 mtr 2.6 3.1 1070940996105 5 mtr 1070940996103 3 mtr
    40 (1½”) 3.8 4.3 1070950996104 5 mtr 1070950996100 3 mtr 3.1 3.6 1070950996105 5 mtr 1070950996101 3 mtr
    50 (2″) 4.9 5.5 1070963996102 5 mtr 1070963996100 3 mtr 4.0 4.6 1070963996103 5 mtr 1070963996101 3 mtr

    DIMENSIONS & PRESSURE RATING FOR CPVC 4120 PIPING SYSTEM (AS PER ASTM F 441)

    Nominal Pipe Size inch “D”(mm)

    SCH 40

    Wall Thickness “t” (mm)

    Pressure Rating at 23°C (kg/cm²)

    Pressure Rating at 82°C (kg/cm²)

    Cat No.

    Package “L”

    Cat No.

    Package “L”

    Min

    Max

    65 (2 ½”)

    5.16

    5.77

    21.3

    5.2

    1070975996101

    5 mtr

    1070975996100

    3 mtr

    80 (3″)

    5.49

    6.15

    18.2

    4.5

    1070990996101

    5 mtr

    1070990996100

    3 mtr

    100(4″ )

    6.02

    6.73

    15.5

    3.8

    1070110996101

    5 mtr

    1070110996100

    3 mtr
    DIMENSIONS & PRESSURE RATING FOR CPVC 4120 PIPING SYSTEM (AS PER ASTM F 441)
    Nominal Pipe Size inch (mm) SCH 80
    Wall Thickness “t” (mm) Pressure Rating at 23°C (kg/cm²) Pressure Rating at 82°C (kg/cm²) Cat No. Package “L” Cat No. Package “L”
    Max
    65 (2 ½”) 7.85 29.5 7.4 1070975996103 5 mtr 1070975996102 3 mtr
    80 (3″) 8.53 26.0 6.3 1070990996103 5 mtr 1070990996102 3 mtr
    100 (4″ ) 9.58 22.5 5.6 1070110996103 5 mtr 1070110996102 3 mtr

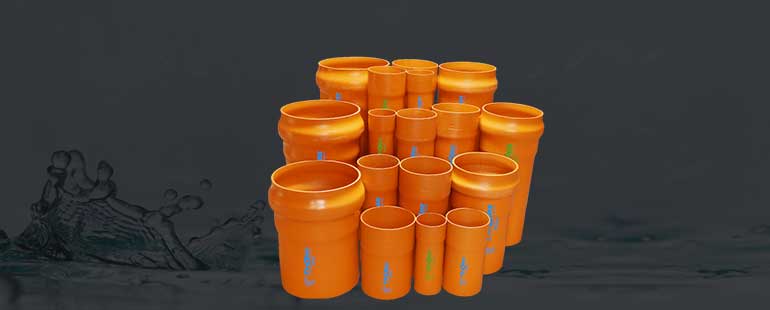

Underground Sewerage Pipes -

Finolex SDR series sewerage pipes are specially designed for underground non- pressure applications like gravity drainage & sewer flow for transportation of soil & waste discharge of domestic origin, surface water (storm water) and industrial effluent. These pipes are available in sizes of 110, 125, 160 & 200 mm in stiffness class of SN-2, SN-4 & SN-8. These pipes are self-socketed, joined with the help of solvent cement (cold welding) and available in standard length of 6 meters & are brown in colour..

  • Technical Specifications for Finolex Underground Sewerage Pipes

    SN 2 (SDR 51, STIFFNESS CLASS 2 KN/m2)—20cm water head



    SIZE CLASS “D” MEAN OUTSIDE DIA O.D. AT ANY POINT WALL THICKNESS (T) LENGTH TOLERANCE ± 5 (M) Cat No. Package “L”
    Min. Max. Min Max. Min. Max.
    160 160 160.5 158 162 3.2 3.7 6.086 1028160995100 6 mtr
    200 200 200.6 197.6 202.4 3.9 4.5 6.106 1028200995102 6 mtr



    SN 4 (SDR 41, STIFFNESS CLASS 4 KN/m2)—40cm water head



    SIZE CLASS “D” MEAN OUTSIDE DIA O.D. AT ANY POINT WALL THICKNESS “T” LENGTH TOLERANCE,± 5 (M) Cat No. Package “L” in mm
    Min. Max. Min Max. Min. Max.
    160 160 160.5 158 162 4 4.6 6.086 1028160995101 6 mtr
    200 200 200.6 197.6 202.4 4.9 5.6 6.106 1028200995100 6 mtr



    SN 8 (SDR 34, STIFFNESS CLASS 8KN//m2)—80cm water head



    SIZE CLASS “D” MEAN OUTSIDEDIA O.D. AT ANY POINT WALL THICKNESS “T” LENGTH TOLERANCE +5 (M) Cat No. Package “L”
    Min. Max. Min Max. Min. Max.
    110 110 110.4 108.6 111.4 3.2 3.7 6.067 1028110995100 6 mtr
    160 160 160.5 158 162 4.7 5.4 6.086 1028160995102 6 mtr
    200 200 200.6 197.6 202.4 5.9 6.7 6.106 1028200995101 6 mtr



    Note:

    The unit of Pascal is N/m2

    kPa=1000×10-5kg/cm2=1000×10-5m of water

    2kPa= 10-2kg/cm2=20cm of water.






SWR PIPES WITH INTEGRATED RINGS -

(Conforms to IS:13592)
Finolex SWR pipes and fittings with integrated rings support easy and quick installation as the integrated ring is pre-fitted in the groove of the socket remains permanently positioned. The joint is made simply by pushing the spigot end into the socket end. No solvent cement is required to make joints.

  • Technical Specifications for Finolex SWR PIPES WITH INTEGRATED RINGS
    Nominal Diameter Mean Outside Diameter of Pipe Outside Diameter of Pipe at Any Point Wall Thickness Cat No. Package Cat No. Package
    DN Min Max. Min Max. Min. Max
    75 A 75 75.3 74.1 75.9 1.8 2.2 1018975941101 6 mtr 1018975941100 3 mtr
    75 B 75 75.3 74.1 75.9 3.2 3.8 1018975992101 6 mtr 1018975992100 3 mtr
    90 A 90 90.3 88.9 91.2 1.9 2.3 1018990992103 6 mtr 1018990992100 3 mtr
    90 B 90 90.3 88.9 91.2 3.2 3.8 1018990992102 6 mtr 1018990992101 3 mtr
    110 A 110 110.4 108.6 111.4 2.2 2.7 1018110941101 6 mtr 1018110941100 3 mtr
    110 B 110 110.4 108.6 111.4 3.2 3.8 1018110992101 6 mtr 1018110992100 3 mtr
    160 A 160 160.5 158 162 3.2 3.8 1018160992101 6 mtr 1018160994100 3 mtr
    160 B 160 160.5 158 162 4.2 4.8 1018160992102 6 mtr 1018160992100 3 mtr


    Socket
    Depth    		 Mean ID of Socket

    at Mid Point

    Min

    		 Min Max.
    40 75.10 75.30
    40 75.10 75.30
    46 90.10 90.30
    46 90.10 90.30
    48 110.10 110.40
    48 110.10 110.40
    58 160.20 160.50
    58 160.20 160.50

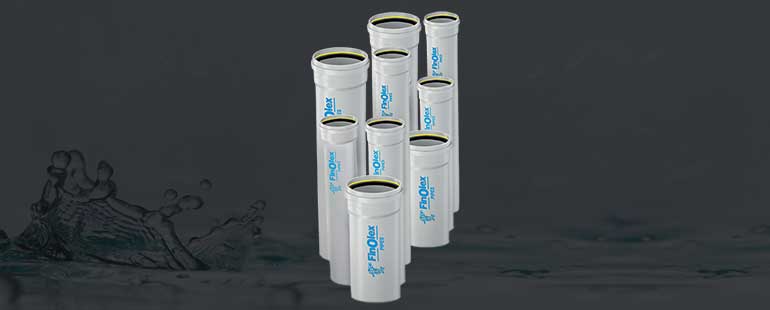

SWR SELFIT PVC PIPES -

(Conforms to IS:13592)
Finolex SWR pipes are manufactured in a way that one end of the pipe is plain, while the other is self-socketed. This is done on sophisticated automatic machines for high accuracy. The best feature of these pipes is that they can be easily joined with the use of solvent cement and they form a permanent water tight joint which is very durable.

  • Technical Specifications for Finolex SWR SELFIT PVC PIPES
    Nominal Diameter Mean Outside Diameter of Pipe Outside Diameter of Pipe at Any Point Wall Thickness Cat No. Package Cat No. Package
    DN Min Max. Min Max. Min. Max
    75 A 75 75.3 74.1 75.9 1.8 2.2 1018975941101 6 mtr 1018975941100 3 mtr
    75 B 75 75.3 74.1 75.9 3.2 3.8 1018975992101 6 mtr 1018975992100 3 mtr
    90 A 90 90.3 88.9 91.2 1.9 2.3 1018990992103 6 mtr 1018990992100 3 mtr
    90 B 90 90.3 88.9 91.2 3.2 3.8 1018990992102 6 mtr 1018990992101 3 mtr
    110 A 110 110.4 108.6 111.4 2.2 2.7 1018110941101 6 mtr 1018110941100 3 mtr
    110 B 110 110.4 108.6 111.4 3.2 3.8 1018110992101 6 mtr 1018110992100 3 mtr
    160 A 160 160.5 158 162 3.2 3.8 1018160992101 6 mtr 1018160994100 3 mtr
    160 B 160 160.5 158 162 4.2 4.8 1018160992102 6 mtr 1018160992100 3 mtr


    Socket
    Depth    		 Mean ID of Socket

    at Mid Point

    Min

    		 Min Max.
    40 75.10 75.30
    40 75.10 75.30
    46 90.10 90.30
    46 90.10 90.30
    48 110.10 110.40
    48 110.10 110.40
    58 160.20 160.50
    58 160.20 160.50
